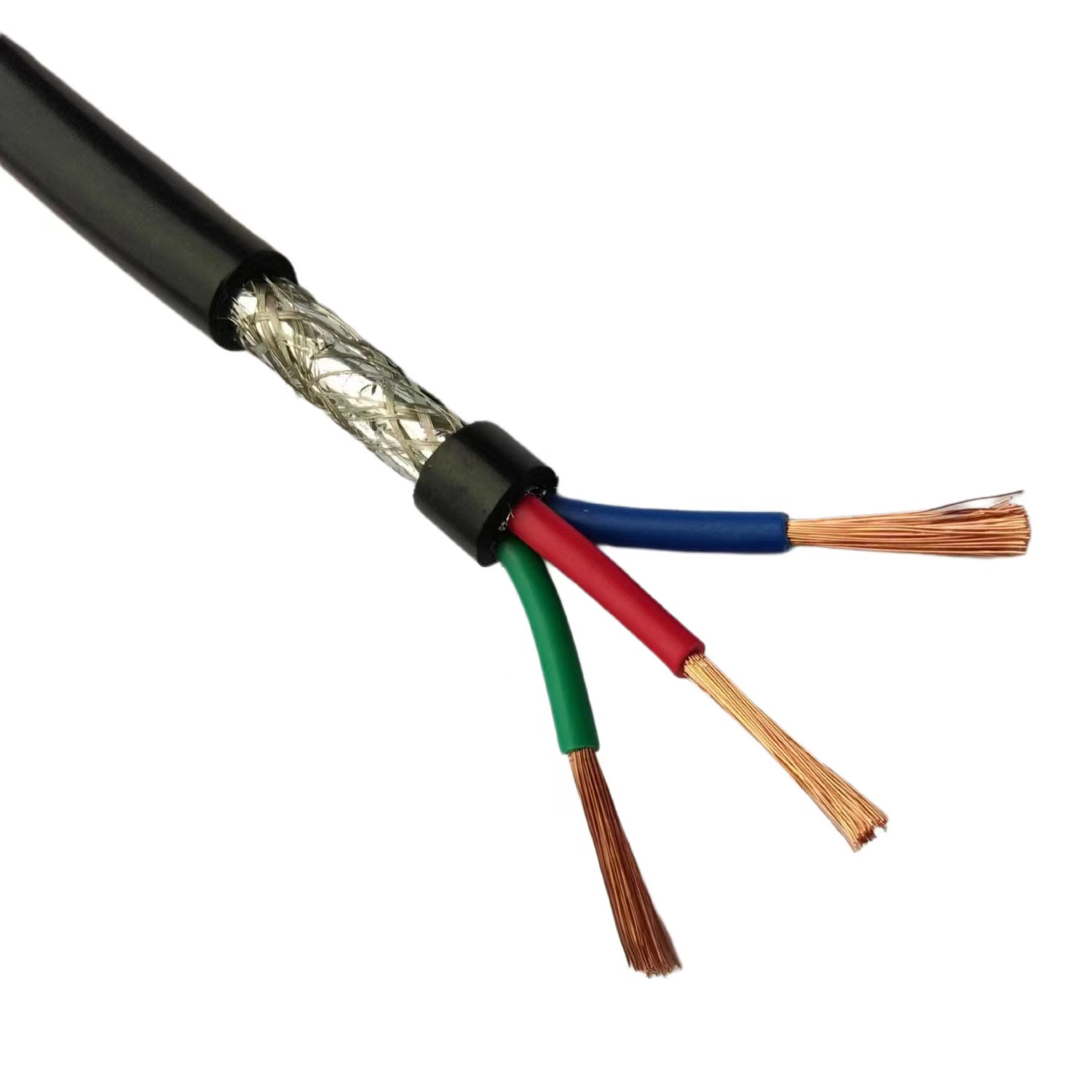

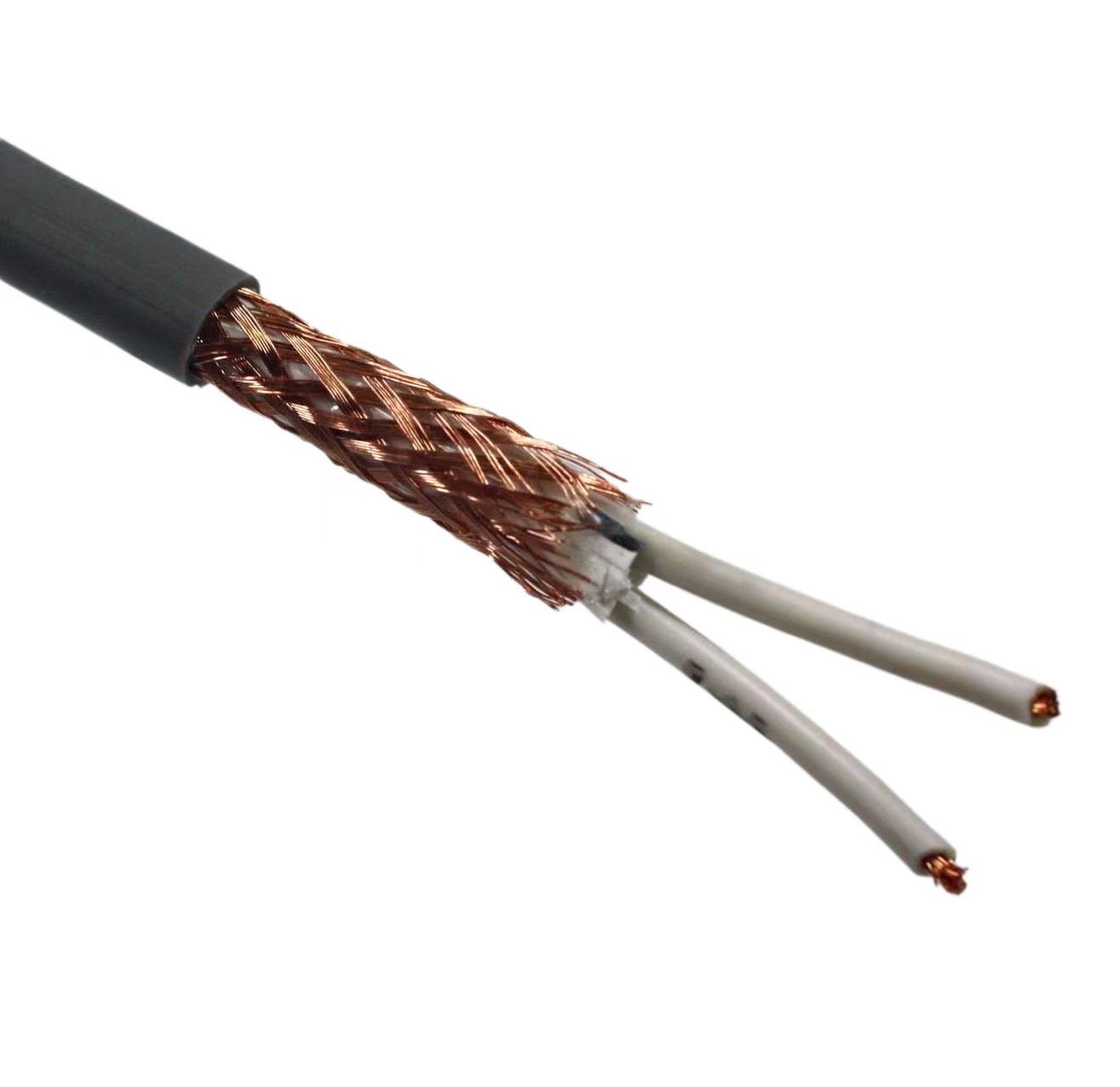

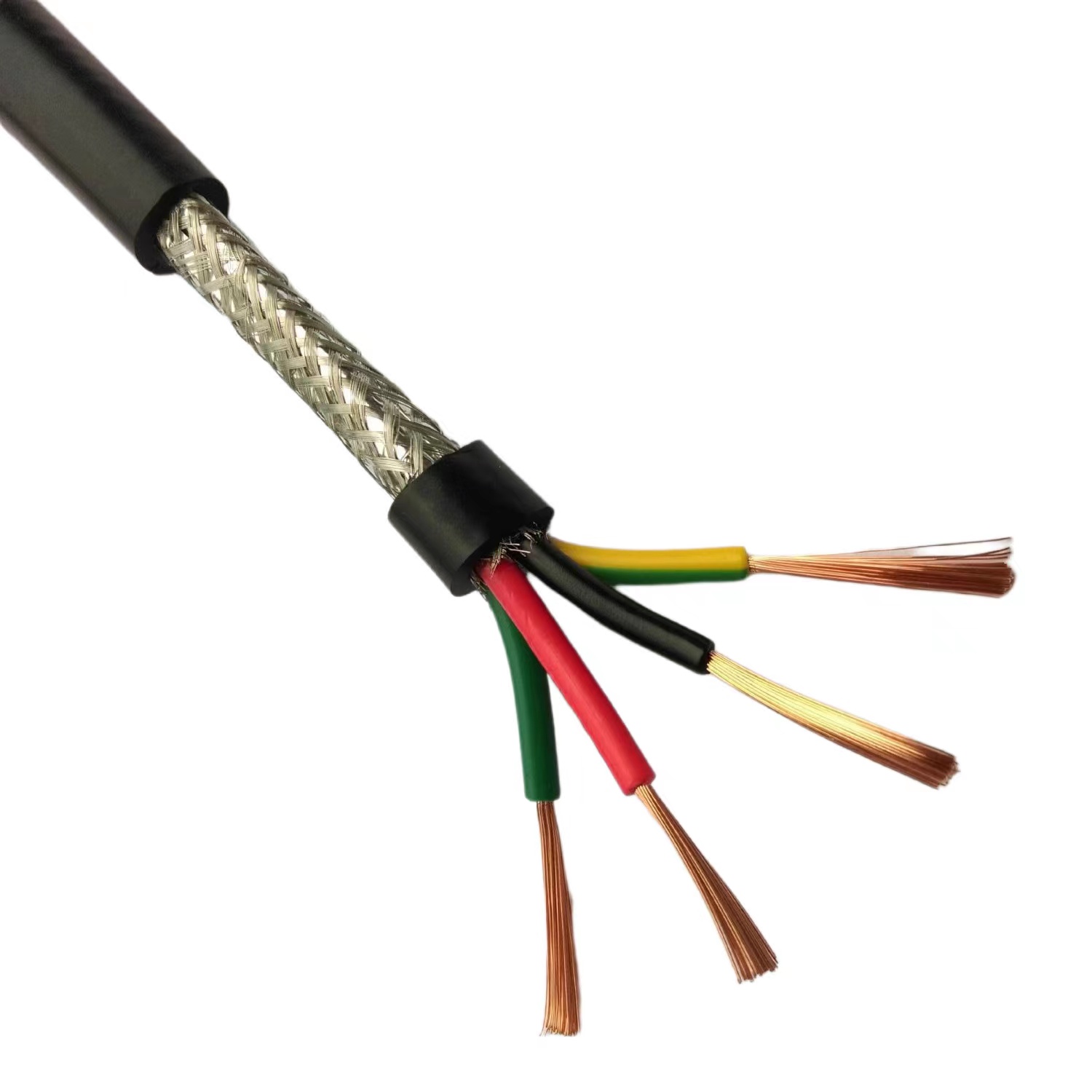

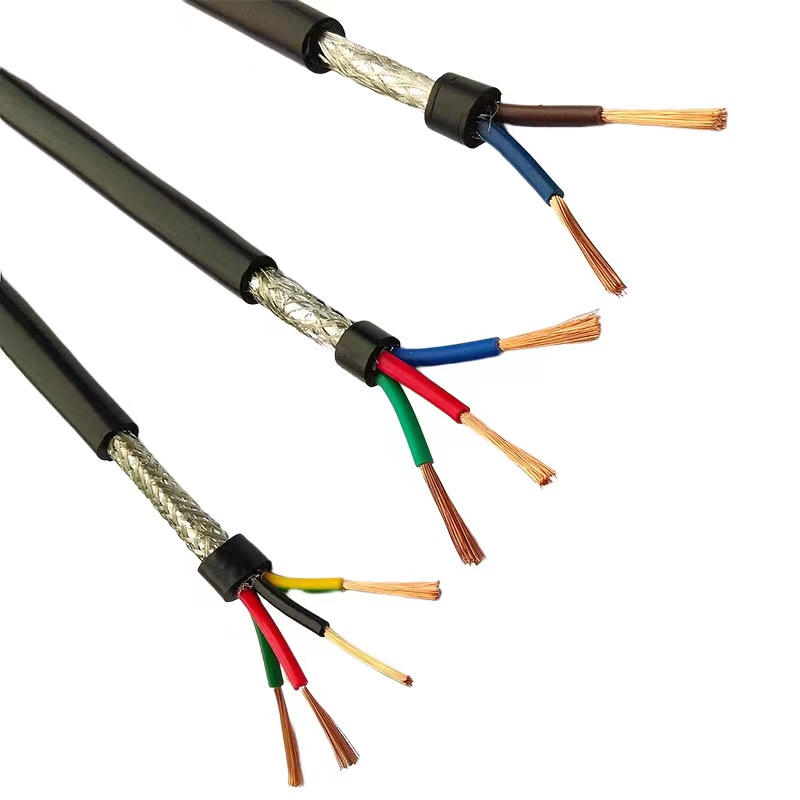

聚氯乙烯绝缘聚氯乙烯护套软电缆RVVP 屏蔽线缆

安装电线一般用于定电压450/750V及以下的动力装置、固定布线及挠性连接电器，家用电器，小型电动工具，仪器仪表及照明等场合。

描述

适用范围：Application

本产品适用于各种电器电子设备及自动化装置内部固定敷设，小型电动工具、仪器仪表及动力照明连接用。

执行标准：Standard GB5023， JB8734

使用条件：Operating condition

使用温度：允许长期工作温度应不超过7O℃、105℃；

敷设条件：敷设温度应不低于-15℃。

型号及名称：Type and designation

型号 Type	名称 Designation
BV	一般用途单芯硬导体无护套电缆
BVR	铜芯聚氯乙烯绝缘软电缆
BVV	轻型聚氯乙烯护套电缆
BVVB	铜芯聚氯乙烯绝缘聚氯乙烯护套扁型电缆
RV	一般用途单芯软导体无护套电缆
RVV	普通聚氯乙烯护套软电缆
RVS	铜芯聚氯乙烯绝缘绞型连接软电线
RVB	扁型无护套软线
AVVR	铜芯聚氯乙烯绝缘聚氯乙烯护套安装用软电缆
RVP	铜芯聚氯乙烯绝缘屏蔽软电线
RVVP	铜芯聚氯乙烯绝缘、屏蔽、聚氯乙烯护套软电缆

上表仅列出70℃的线缆，对于阻燃型线缆在型号前加ZR (ZC),对于105℃的线缆，其型号后加“-105”

规格、尺寸及主要技术参数

型号 Type		额定电压 Rated Voltage V	标称截面 Nom. Cross Section mm2	导体Conductor 根数值径 Number/ wires Dia.mm	最大外径 Ma× O.D. mm	20℃时导体电阻 Cond.Resist. ≤Ω/km		70℃时或95℃时绝缘电阻Insul.Resist.at 70℃ or95℃ ≤MΩ•m	试验电压 Texting Voltage KV	计算重量Calculated kg/km
型号 Type		额定电压 Rated Voltage V	标称截面 Nom. Cross Section mm2	导体Conductor 根数值径 Number/ wires Dia.mm	最大外径 Ma× O.D. mm	铜芯	镀锡铜芯	70℃时或95℃时绝缘电阻Insul.Resist.at 70℃ or95℃ ≤MΩ•m	试验电压 Texting Voltage KV	计算重量Calculated kg/km
			0.5	1/0.8	2.4	36.0	36.7	15		8.5
BV		300/500	0.75	1/0.97	2.6	24.5	24.8	13	2	11.9
BV		300/500	1	1/1.13	2.8	18.1	18.2	12	2	13.9
			1.5	1/1.38	3.3	12.1	12.2	11		20.3
			2.5	1/1.78	3.9	7.41	7.56	10		31.6
			4	1/2.25	4.4	4.61	4.7	8.5		47.1
			6	1/2.76	4.9	3.08	3.11	7.0		67.1
			10	7/1.35	6.4	1.83	1.84	7.0		108
BV		450/750	16	7/1.70	8.0	1.15	1.16	0.005	2.5	178
			25	7/2.14	9.8	0.727	0.734	0.005		226
			35	7/2.52	11.0	0.524	0.529	0.004		370
			50	19/1.78	13.0	0.387	0.391	0.0045		496
			70	19/2.14	15.0	0.268	0.27	0.0035		701
			95	19/2.50	17.0	0.193	0.195	0.0035		970
			2.5	19/0.41	4.1	7.98	8.21	0.011		33
			4	19/0.52	4.8	4.95	5.09	0.009		49
			6	19/0.64	5.3	3.30	3.39	0.0084		71
			10	49/0.52	6.8	1.91	1.95	0.0072		120
			16	49/0.64	8.1	1.21	1.24	0.0062		180
BVR		450/750	25	98/0.58	10.2	0.780	0.795	0.0058	2.5	295
			35	133/0.58	11.7	0.554	0.565	0.0052		404
			50	133/0.68	1.9	0.386	0.393	0.0051		540
			70	133/0.68	16.0	0.272	0.277	0.0045		760
RV		300/500	0.3	16/0.15	2.3	69.2	71.2	16	2.0	6.4
			0.4	23/0.15	2.5	48.2	49.6	14		8.1
			0.5	16/0.2	2.6	39.0	40.1	13		9.1
			0.75	24/0.2	2.8	26.0	26.7	11		12.2
			1	32/0.2	3	19.5	20.0	10		15.1
RV		450/750	1.5	30/0.25	3.5	13.3	13.7	TO	2.5	21.4
			2.5	49/0.25	4.2	7.98	8.21	9		24.4
			4	56/0.3	4.8	4.95	5.09	7		51.8
			6	84/0.3	6.4	3.3	3.39	6		74.1
			10	84/0.4	8.0	1.91	1.95	5.6		124
			16	126/0.4	9.4	1.21	1.24	4.6		183
			25	196/0.4	11.5	0.78	0.795	4.4		278
			35	276/0.4	13.0	0.554	0.565	3.8		370
			50	396/0.4	15.0	0.386	0.393	3.7		554
RVB		300/300	2×0.3	16/0.15	2.3×4.3	69.2	71.2	16	2	12.5
			2×0.4	23/0.15	2.5×4.6	48.2	49.6	14		15.5
			2×0.5	28/0.15	3.0×5.0	39.0	40.1	16		22.3
			2×0.75	42/0.15	3.2×6.2	26.0	26.7	14		28.9
			2×1.0	32/0.2	3.4×6.6	19.5	20.0	12		32.7
			2×1.5	48/0.2	3.6×6.8	13.3	13.7	10		43.0
			2×2.5	49/0.25	3.9×7.3	7.98	8.21	9		68.0
RVS		300/300	2×0.3	16/0.15	4.3	69.2	71.2	16	2	12.8
			2×0.4	23/0.15	4.6	48.2	49.6	14		16.2
			2×0.5	28/0.15	5.8	39	40.1	16		22.9
			2×0.75	42/0.15	6.2	26	26.7	14		29.6
			2×1.0	32/0.2	6.4	19.5	20.0	10		36
			2×1.5	48/0.2	7.5	13.3	13.7	9		44
			2×2.5	49/0.25	8	7.98	8.2	9		68
RVVB RVV		300/300	2×0.5	16/0.2	6	39	40.1	12	1.5	31.5
			2×0.5	16/0.2	3.8×6.0	39	40.1	12		27.7
			2×0.75	24/0.2	6.4	26	26.7	10		40
			2×0.75	24/0.2	3.9×6.4	26	26.7	10		34.5
			3×0.5	16/0.2	6.2	39	40.1	12		40.6
			3×0.75	24/0.2	6.8	26	26.7	10		51.8
RVVB RVV		300/500	2×0.75	24/0.2	7.6	26	26.7	11	2	50
			2×0.75	24/0.2	5.0×7.6	26	26.7	11		43.3
			2×1.0	32/0.2	8.0	19.5	20.0	10		57.8
			2×1.5	30/0.25	9.0	13.3	13.7	10		74.7
			2×2.5	49/0.25	11.0	7.98	8.2	9		120
			3×0.75	24/0.2	8.0	26	26.7	11		63.1
			3×1.0	32/0.2	8.4	19.5	20.0	10		74
			3×1.5	30/0.25	9.8	13.3	13.7	10		102
			3×2.5	49/0.25	12.0	7.98	8.2	9		162
			4×0.75	24/0.2	8.6	26	26.7	11		78.5
			4×1.0	32/0.2	9.2	19.5	20.0	10		97.5
			4×1.5	30/0.25	11.0	13.3	13.7	10		133
			4×2.5	49/0.25	12.5	7.98	8.2	9		204
			5×0.75	24/0.2	9.4	26	26.7	11		96.9
			5×1.0	32/0.2	10.0	19.5	20.0	10		115
			5×1.5	30/0.25	12.0	13.3	13.7	10		158
			5×2.5	49/0.25	14.0	7.98	8.2	9		249
AVVR		300/300	2×0.12	7/0.15	4.3 2.9×4.3	158	163	16	1.5	15.2 12.2
			2×0.2	12/0.15	4.7 3.1 ×4.7	92.3	95	14		18.4 15.3
			2×0.3	16/0.15	5.3 3.4×5.3	69.2	71.2	14		23.4 19.7
			2×0.4	23/0.15	5.6 3.5×5.6	48.2	49.6	13		28.0 23.8
AVVR		300/300	3×0.12	7/0.15	4.5	158.0	163.0	16	1.5	18.4
			3×0.2	12/0.15	4.9	92.3	95.0	14		23.1
			3×0.3	16/0.15	5.6	69.2	71.2	14		19.9
			3×0.4	23/0.15	6.0	48.2	49.6	13		36.2
			4×0.12	7/0.15	4.9	158.0	163.0	16		22.3
			4×0.2	12/0.15	5.4	92.3	95.0	14		28.4
			4×0.3	16/0.15	6.2	69.2	71.2	14		37.0
			4×0.4	23/0.15	6.6	48.2	49.6	13		45.2
			5×0.12	7/0.15	5.3	158.0	163.0	16		26.2
			5×0.2	12/0.15	5.8	92.3	95.0	14		34.5
			5×0.3	16/0.15	6.6	69.2	71.2	14		43.7
			5×0.4	23/0.15	7.0	48.2	49.6	13		53.7
			6-7×0.12	7/0.15	5.7	158.0	163.0	16		30.2 33.1
			6-7×0.2	12/0.15	6.2	92.3	95.0	14		39.0 43.1
			6-7×0.3	16/0.15	7.2	69.2	71.2	14		51.4 57.1
			6-7×0.4	23/0.15	7.0	48.2	49.6	13		63.4 70.8
			10×0.12	7/0.15	7.2	158.0	163.0	16		45.5
			10×0.2	12/0.15	7.8	92.3	95.0	14		59.6
			10×0.3	16/0.15	9.7	69.2	71.2	14		80.2
			10×0.4	23/0.15	10.4	48.2	49.6	13		99.8
			12×0.12	7/0.15	7.4	158.0	163.0	16		51.8
			12×0.2	12/0.15	8.0	92.3	95.0	14		68.5
			12×0.3	16/0.15	10.1	69.2	71.2	14		101
			12×0.4	23/0.15	10.5	48.2	49.6	13		125
			14×0.12	7/0.15	7.8	158.0	163.0	16		58.0
			14×0.2	12/0.15	9.1	92.3	95.0	14		86.0
			14×0.3	16/0.15	10.5	69.2	71.2	14		114
			14×0.4	23/0.15	11.0	48.2	49.6	13		143
			16×0.12	7/0.15	8.0	158.0	163.0	16		65.4
			16×0.2	12/0.15	9.2	92.3	95.0	14		95.8
			16×0.3	16/0.15	11.0	69.2	71.2	14		128
			16×0.4	23/0.15	11.5	48.2	49.6	13		158
			19×0.12	7/0.15	9.0	158.0	163.0	16		74.5
			19×0.2	12/0.15	10.1	92.3	95.0	14		100
			19×0.3	16/0.15	11.5	69.2	71.2	14		146
			19×0.4	23/0.15	12.0	48.2	49.6	13		181
			24×0.12	7/0.15	10.5	158.0	163.0	16		103
			24×0.2	12/0.15	11.5	92.3	95.0	14		137
			24×0.3	16/0.15	14.2	69.2	71.2	14		197
			24×0.4	23/0.15	15.2	48.2	49.6	13		244
RVVP		300/300	1×0.12	7/0.15	2.8	158.0	163	16	绝缘厚度 ≤0.6mm者试验电压为 1.5KV>0.6 mm者.试验电压为2KV	10.1
			1×0.12	12/0.15	3.0	92.3	95	13		13.1
			1×0.3	16/0.15	3.3	69.2	71.2	14		16
			1×0.4	23/0.15	3.5	48.2	49.6	13		22.4
			1×0.5	16/0.2	3.6	39.0	40.1	12		23.5
			1×0.75	24/0.2	3.8	26.0	26.7	10		28.2
			1×1.0	32/0.2	4.1	19.5	20.0	10		39.2
			1×1.5	30/0.25	5.2	13.3	13.7	9		45.8
			1×2.5	49/0.25	5.8	7.98	8.21	8		64.4
			2×0.12	7/0.15	4.9 3.4×4.9	158.0	163.0	16		25.4 20.2
			2×0.2	12/0.15	5.3 3.7×5.3	92.3	95.0	13		33.2 25.8
			2×0.3	16/0.15	6.2 4.2×6.2	69.2	71.2	14		49.3 32.8
			2×0.4	23/0.15	6.6 4.4×6.6	48.2	49.6	13		57.0 43.5
RVVP	300/300		2×0.5	7/0.15	6.8 4.5×6.8	39.0	40.1	12	绝缘厚度 ≤0.6mm者试验电压为 1.5KV>0.6 mm者.试验电压为2KV	59.2 45.6
			2×0.75	12/0.15	7.2 4.7×7.2	26.0	26.7	10		70.7 55.0
			2×1.0	16/0.15	8.0 5.2×8.0	18.5	20	10		86.7 69.0
			2×1.5	23/0.15	9.0 6.0×9.0	13.3	13.7	9		110 89.1
			3×0.12	7/0.15	5.1	158.0	163	16		26.2
			3×0.2	12/0.15	5.8	92.3	95	13		38.6
			3×0.3	16/0.15	6.5	69.2	71.2	14		48.6
			3×0.4	23/0.15	6.8	48.2	49.6	13		56.7
			3×0.5	16/0.2	7.0	39.0	40.1	12		60.7
			3×0.75	24/0.2	7.6	26.0	26.7	10		73.6
			3×1.0	32/0.2	8.8	19.5	20.0	10		100
			3×1.5	30/0.25	9.8	13.3	13.7	9		131
			4×0.12	7/0.15	5.8	158.0	163.0	16		35.2
			4×0.2	12/0.15	6.2	92.3	95.0	13		45.9
			4×0.3	16/0.15	7.0	69.2	71.2	14		57.5
			4×0.4	23/0.15	7.5	48.2	49.6	13		67.9
			5×0.12	7/0.15	5.8	158.0	163.0	16		40.5
			5×0.2	12/0.15	6.2	92.3	95.0	13		52.7
			5×0.3	16/0.15	7.0	69.2	71.2	14		66.6
			5×0.4	23/0.15	7.5	48.2	49.6	13		78.8
			6-7×0.12	7/0.15	6.6	158.0	163.0	16		39.7 48.5
			6-7×0.2	12/0.15	7.2	92.3	95.0	13		59.6 64.2
			6-7×0.3	16/0.15	8.0	69.2	71.2	14		46.6 82.3
			6-7×0.4	23/0.15	9.0	48.2	49.6	13		98.3 106
			10×0.12	7/0.15	8.0	158.0	163.0	16		65.3
			10×0.2	12/0.15	9.0	92.3	95.0	13		94.3
			10×0.3	16/0.15	10.5	69.2	71.2	14		132
			10×0.4	23/0.15	11.5	48.2	49.6	13		157
			12×0.12	7/0.15	8.2	158.0	163.0	16		72.4
			12×0.2	12/0.15	9.2	92.3	95.0	13		105
			12×0.3	16/0.15	11.0	69.2	71.2	14		147
			12×0.4	23/0.15	11.5	48.2	49.6	13		175
			14×0.12	7/0.15	9.0	158.0	163.0	16		87.6
			14×0.2	12/0.15	10.0	92.3	95.0	13		127
			14×0.3	16/0.15	11.5	69.2	71.2	14		162
			14×0.4	23/0.15	12.0	48.2	49.6	13		197
			16×0.12	7/0.15	9.4	158.0	163.0	16		96.3
			16×0.2	12/0.15	10.5	92.3	95.0	13		139
			16×0.3	16/0.15	12.0	69.2	71.2	14		180
			16×0.4	23/0.15	12.5	48.2	49.6	13		216
			19×0.12	7/0.15	10.0	158.0	163.0	16		117
			19×0.2	12/0.15	11.0	92.3	95.0	13		157
			19×0.3	16/0.15	12.5	69.2	71.2	14		203
			19×0.4	23/0.15	13.5	48.2	49.6	13		257
			24×0.12	7/0.15	11.5	158.0	163.0	16		142
			24×0.2	12/0.15	12.5	92.3	95.0	13		191
			24×0.3	16/0.15	14.5	69.2	71.2	14		199
			24×0.4	23/0.15	15.5	48.2	49.6	13		317

注：根据用户需要，可以生产表列以外的各种规格

对BV-105, ZR-BV-105, ZR-RVS-105等105℃类线缆为95℃时最小绝缘电阻。

RVV系列软电缆生产范围为2~41芯，截面0.5mm²~6mm²。
